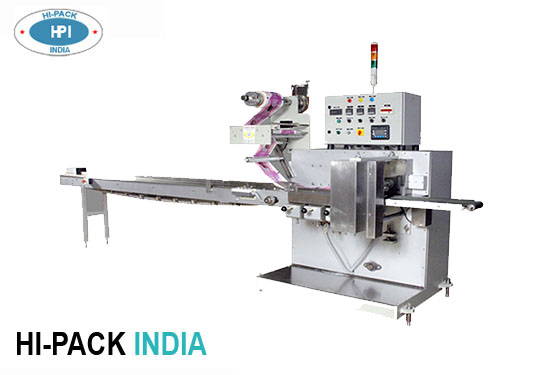

Machine Main Features:-
The packing machine has been manufactured by HI-PACK INDIA totally with indigenous resources and is noiseless and trouble free.
Machine speed 150 pkts per minutes. (according to size of the Product)
M/c PLC Control system.
Design registration can be done by PLC.
MMI panel view provided.
Signal tower light unit.
Jaw guards inter locked through PLC.
Electric motor 1.H.P., 3 phase AC
Product safety system.
No product, No wrapper, sensor provided.
Cross sealing heaters operated on 220 volt.
Infeed conveyor 2.5 meter long, for easy feed in of the product.
Sealing roller, Sealing Jaws, Sprockets and Knives are tempered.
Product contact parts ss 304 food grade.
Machine for other product with higher dimensions can also be fabricated on order.
Polyester Laminated with LLPDE, HDPE, Foil Laminates, Heat sealable plain / Pearliest BOPP and other heat sealable Films.
Minimum
Length : 20 mm
Width : 5 mm
Height : 40 mm
Maximum
Length : 125 mm
Width : 65 mm
Height : 300 mm
Load
Length : 1.5 KW.
Electrical
3 Phase, 1 HP 220V.
DIMENSIONS :-
Length : 4000 mm.
Width : 1020 mm.
Height : 1950 mm.
Weight : 700 Kg.
We are recognized as a reliable manufacturer, supplier, exporter, trader and service provider of packing machines. Horizontal Flow wrap packing Machine for Packing ,Cookies etc.
